CODE / P7

P7 – Anchor bolts DIN 529

P7 DIN 529 Anchor Bolts are foundation fastening components manufactured by Anchor Pro for industrial anchoring applications. Also known as DIN 529 Foundation Bolts or Masonry and Foundation Bolts, this product family includes six different configurations: Form A, Form B, Form C, Form D, Form E and Form F. Available in the M12–M72 dimensional range, with customer-specific manufacturing options upon request.

DIN 529 FORMS

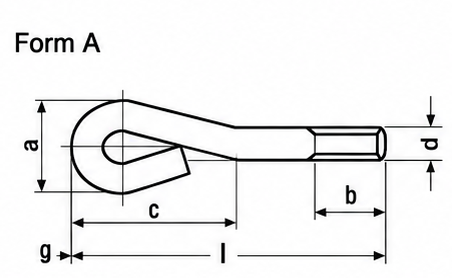

DIN 529 Form A technical drawing.

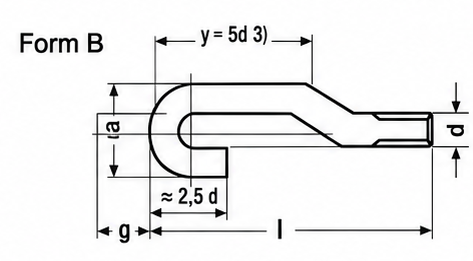

DIN 529 Form B technical drawing.

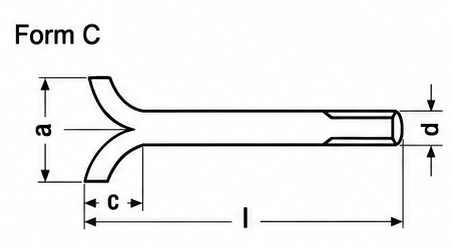

DIN 529 Form C technical drawing.

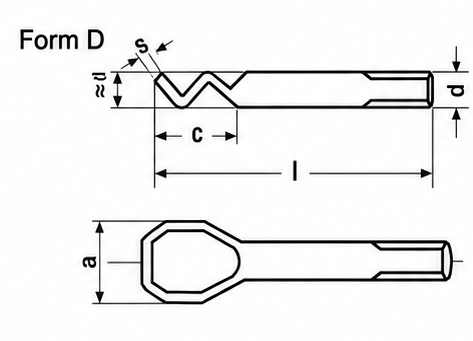

DIN 529 Form D technical drawing with both orthographic views.

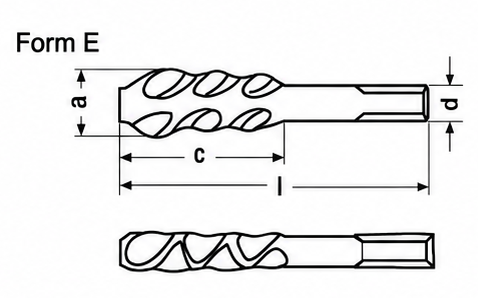

DIN 529 Form E technical drawing with side and supplementary views.

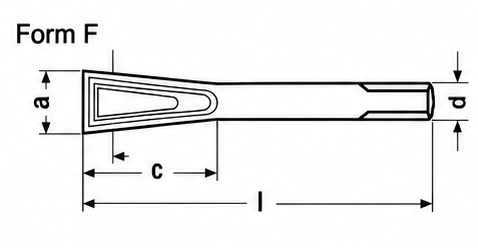

DIN 529 Form F technical drawing.

MATERIALS

AVAILABLE MATERIALS

  • S235JRProperty class 4.6
  • S355JRProperty class 5.6

STAINLESS STEELS

Full Anchor Pro stainless steel range

EXPLORE STAINLESS STEEL MATERIALS

Need a DIN 529 configuration?

Contact Anchor Pro with your requirements to request a quotation.
